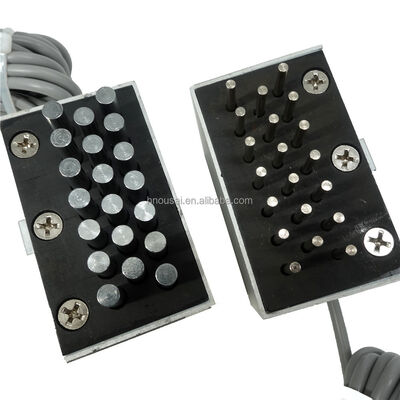

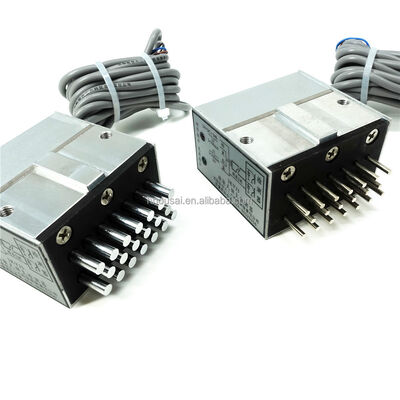

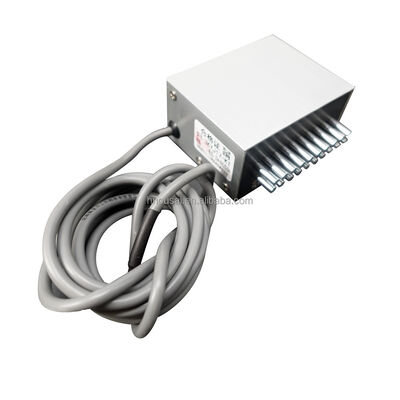

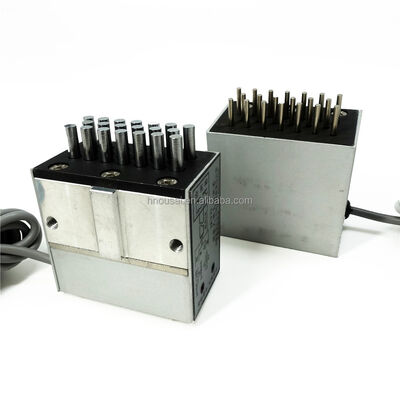

HLP Packer Machine Loose Empty Filter Rod Defective Detector Cigarette Testing Device

Großes Bild : HLP Packer Machine Loose Empty Filter Rod Defective Detector Cigarette Testing Device

Produktdetails:

Herkunftsort:	China

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	$1,300-1,350

Kontakt

Ausführliche Produkt-Beschreibung

Produktionskapazität:	10000 PC-Monat	Angetriebener Typ:	Elektrisch
Automatische Note:	Halbautomatisch	Stromspannung:	220 V
Gewicht (kg):	8	Garantie:	1 Jahr
Wichtige Verkaufsargumente:	Automatisch	Produktname:	Lösen Sie den Endfilter-Erkenner
Größe:	King/Queen/Superslim-Größe	Verwendung:	Sasib 3000/ Sasib 6000 / HLP2
Hauptspannung:	24VDC	Besonderheit:	Lange Funktionslebensdauer
Paket:	Karton/Holz	Zertifikat:	CER/ISO
Hervorheben:	HLP Packer Machine filter rod detector , cigarette testing device for loose rods , empty filter rod detector with warranty

Product Overview

A cigarette testing device for cigarette packaging machines located at a point in the manufacturing process just before the cigarettes are placed into cigarette packages, for simultaneously testing the ends of cigarettes disposed in a group. Magnetic Sensitive Loose-end Missing Filter Defective Cigarette Detector is a cigarettes location detection system, built-in 20 displacement magnetoelectric converters, used for dectecting the loose-end and missing filter rod, if the cigarette was detected loose-end or missing filter, the sensor will output signal, for rejecting the cigarettes into the pack. This system includes a probe in the form of a split fiber optics bundle located adjacent a conveyor or other transport means for cigarettes which travel along the conveyor with their axes substantially normal to the direction of travel of the conveyor. The fibers of the bundle are divided randomly and one branch extends to a light source and the other to a detector. In this fashion, light will be directed from the probe towards the tobacco end of the traveling cigarettes. The reflected light is transmitted through the other branch to the detector which is coupled with a bridge circuit for measuring the level of intensity of the reflected light. When a loose cigarette end is detected, either a memory circuit or wheel is actuated in order that the cigarette having the detected loose end will be eventually rejected by an ejection mechanism.

Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and supply of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry. We understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements.

Our comprehensive range of products includes spare parts for cigarette making, packing machine and filter making machine. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry.
